H_TNFR2 Reporter V2 Cell Line
Description
Cat. No: GM-C25776
Product: H_TNFR2 Reporter V2 Cell Line


Tumor necrosis factor-alpha (TNF-α) is a type II transmembrane protein that exists in a membrane-bound form (mTNF-α). mTNF-α can be processed by an enzyme known as TNFα-converting enzyme into a 17 kDa soluble form (sTNF-α). TNF-α functions through two type I transmembrane receptors of the TNF receptor superfamily: TNF receptor 1 (TNFR1) and TNF receptor 2 (TNFR2). The extracellular domains of both receptors have similar cysteine-rich motifs, repeated two to six times. TNFR2 is primarily activated by mTNF-α and is mainly expressed in thymic T lymphocytes, endothelial cells, microglia, and oligodendrocytes.

TNFR2 activates the NF-κB signaling pathway, promoting the expression of anti-apoptotic genes, thereby enhancing cell survival. TNFR2 can also activate the MAPK signaling pathway, affecting cell proliferation and differentiation.

H_TNFR2 Reporter V2 Cell Line is a clonal stable cell line constructed using lentiviral technology, constitutive expression of the TNFR2 gene and knockout TNFR1 gene, along with signal-dependent expression of a luciferase reporter gene. When mTNF-α binds to TNFR2, it activates downstream signaling pathways, leading to the expression of luciferase. Blockade antibodies can inhibit this signal transmission. The luciferase activity measurement indicates the activation level of the signaling pathway and can thus be used to evaluate the in vitro effects of drugs related to TNFR2.
Data

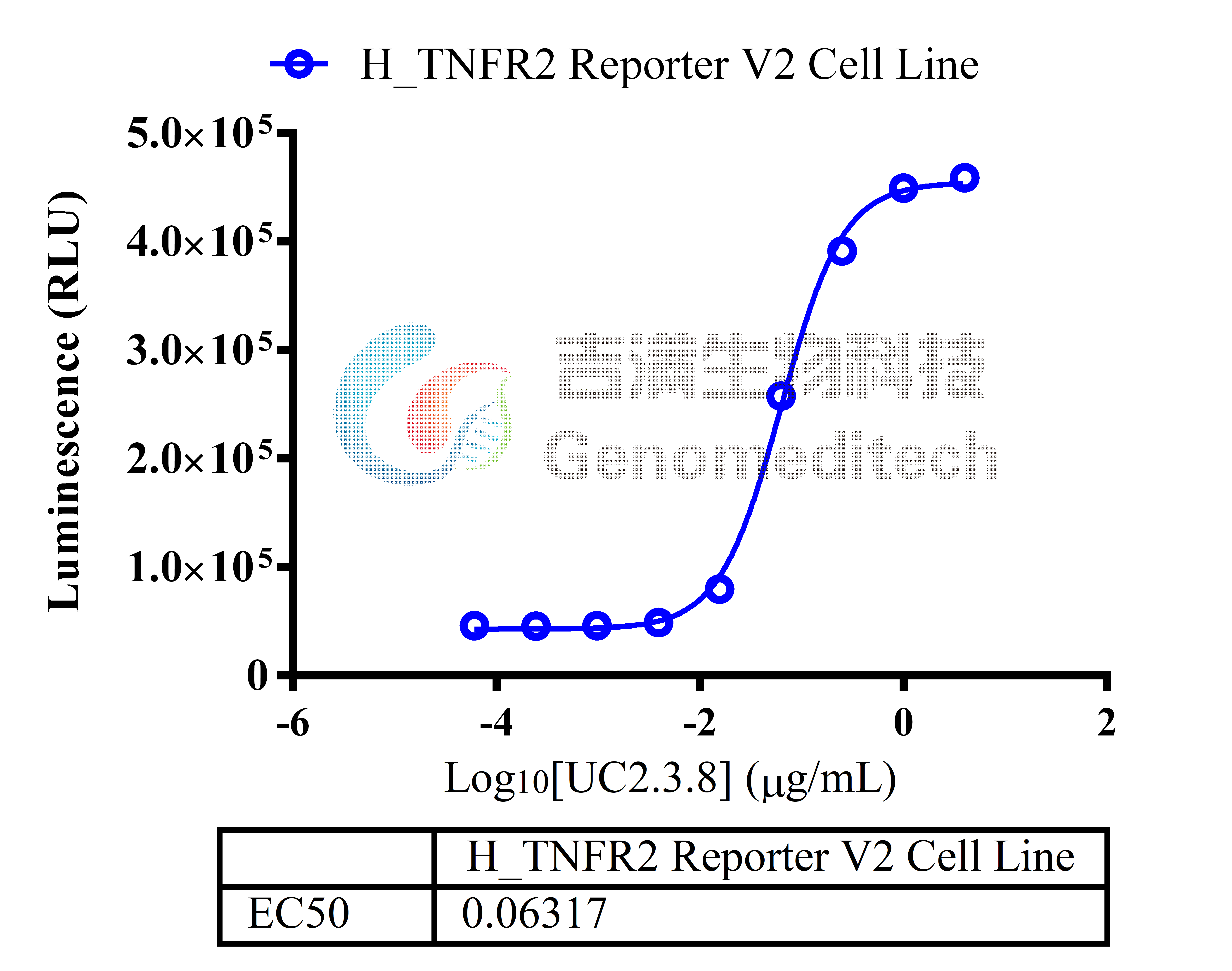

Response to Anti-H_TNFRSF1B(TNFR2) hIgG1 Antibody(UC2.3.8). The H_TNFR2 Reporter V2 Cell Line (Cat. GM-C25776) at a concentration of 1E5 cells/well (96-well format) was stimulated with serial dilutions of Anti-H_TNFRSF1B(TNFR2) hIgG1 Antibody(UC2.3.8) (Cat. GM-49245AB) in assay buffer (RPMI 1640 + 1% FBS + 1% P.S) for 7 hours. The firefly luciferase activity was measured using the GMOne-Step Luciferase Reporter Gene Assay Kit (Cat. GM-040503). The maximum induction fold was approximately [10.0]. Data are shown by drug mass concentration.
Response to Membrane Bound H_TNFα(cleavage-resistant) CHO-K1 Cell Line. H_TNFR2 Reporter V2 Cell Line (Cat. GM-C25776) at a concentration of 1E5 cells/well (96-well format) was stimulated with serial dilutions of Membrane Bound H_TNFα(cleavage-resistant) CHO-K1 Cell Line (Cat. GM-C33297) for 6 hours. The firefly luciferase activity was measured using the GMOne-Step Luciferase Reporter Gene Assay Kit (Cat. GM-040503).
Response to Anti-H_TNFR2 hIgG1 Antibody(1H10). Serial dilutions of Anti-H_TNFR2 hIgG1 Antibody(1H10) (Cat. GM-59476AB) were incubated with 1E5 cells/well of the H_TNFR2 Reporter V2 Cell Line (Cat. GM-C25776) in a 96-well plate for 1 hour in assay buffer (RPMI 1640 + 1% FBS + 1% P.S). After pre-incubation, add the mixture to the Membrane Bound H_TNFα(cleavage-resistant) CHO-K1 Cell Line at a density of 1.5E4 cells/well in a 96-well format, and incubate for 6 hours. Firefly luciferase activity is then measured using the GMOne-Step Luciferase Reporter Gene Assay Kit (Cat. GM-040503). The results indicated maximum blocking folds of approximately [12.7], respectively. Data are shown by drug mass concentration.
Response to Human TNF-alpha Protein. The H_TNFR2 Reporter V2 Cell Line (Cat. GM-C25776) and H_TNFR2 Null Reporter Cell Line (Cat. GM-C27615) at a concentration of 1E5 cells/well (96-well format) were separately stimulated with serial dilutions of Recombinant Human TNF alpha (Novoprotein/C008) and Recombinant Human TNF-alpha Protein (Sinobiological/10602-HNAE) in assay buffer (RPMI 1640 + 1% FBS + 1% P.S) for 7 hours. The firefly luciferase activity was measured using the GMOne-Step Luciferase Reporter Gene Assay Kit (Cat. GM-040503). Data are shown by drug mass concentration.
The passage stability of response to Anti-H_TNFRSF1B(TNFR2) hIgG1 Antibody(UC2.3.8). The passage 4, 14 and 24 of H_TNFR2 Reporter V2 Cell Line (Cat. GM-C25776) at a concentration of 1E5 cells/well (96-well format) were stimulated with serial dilutions of Anti-H_TNFRSF1B(TNFR2) hIgG1 Antibody(UC2.3.8) (Cat. GM-49245AB) in assay buffer (RPMI 1640 + 1% FBS + 1% P.S) for 7 hours. The firefly luciferase activity was measured using the GMOne-Step Luciferase Reporter Gene Assay Kit (Cat. GM-040503). Data are shown by drug mass concentration.

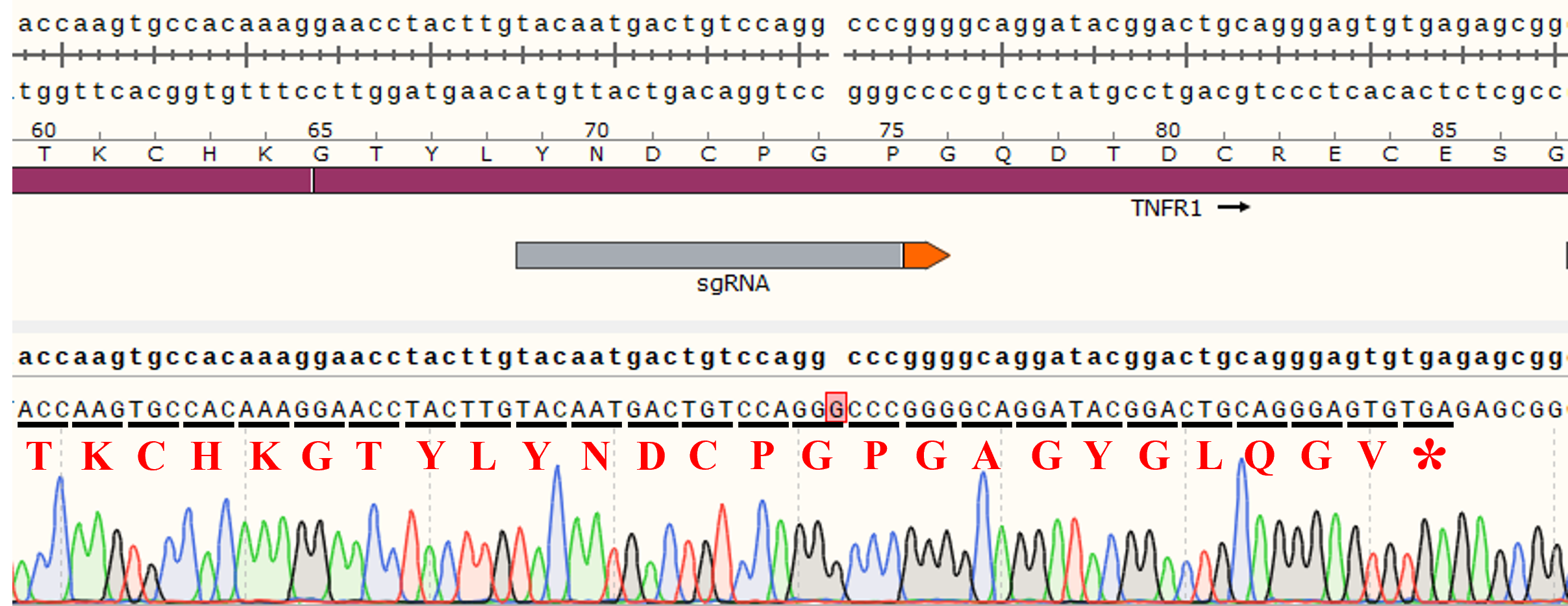

The Sanger sequencing of the H_TNFR2 Reporter V2 Cell Line showed successful knockout of TNFR1.
H_TNFR2 Reporter V2 Cell Line (Cat. GM-C25776) was determined by flow cytometry using Anti-H_TNFR2 hIgG1 Antibody(1H10) (Cat. GM-59476AB).
The H_TNFR2 Reporter V2 Cell Line (Cat. GM-C25776) and H_TNFR2 Null Reporter Cell Line (Cat. GM-C27615) were determined by flow cytometry using Anti-TNFR1 hIgG1 Antibody (Atrosab) (Cat. GM-51152AB).
Specifications
Cat. NoGM-C25776
ProductH_TNFR2 Reporter V2 Cell Line
Product Format1 vial of frozen cells
Quantity5E6 Cells per vial,1 mL
Storage ConditionsLiquid nitrogen immediately upon receipt
Recovery MediumRPMI 1640+10% FBS+1% P.S
Growth mediumRPMI 1640+10% FBS+1% P.S+3.5 μg/mL Blasticidin+400 μg/mL Bleomycin+0.75 μg/mL Puromycin
NoteNone
Freezing Medium90% FBS+10% DMSO
Growth propertiesSuspension
Growth Conditions37°C, 5% CO₂
Safety considerationsBiosafety Level 2
Mycoplasma TestingThe cell line has been screened to confirm the absence of Mycoplasma species.
Materials
ReagentOrdering Information
RPMI 1640VivaCell/C3010-0500
Fetal Bovine SerumCegrogen biotech/A0500-3010
Pen/StrepThermo/15140-122
BlasticidinGenomeditech/GM-040404
BleomycinGenomeditech/GM-040407
PuromycinGenomeditech/GM-040401
Membrane Bound H_TNFα(cleavage-resistant) CHO-K1 Cell LineGenomeditech/GM-C33297
Recombinant Human TNF alphaNovoprotein/C008
Recombinant Human TNF-alpha ProteinSino Biological/10602-HNAE
Anti-H_TNFR2 hIgG1 Antibody(1H10)Genomeditech/GM-59476AB
Anti-H_TNFRSF1B(TNFR2) hIgG1 Antibody(UC2.3.8)Genomeditech/GM-49245AB
Anti-TNFR1 hIgG1 Antibody(Atrosab)Genomeditech/GM-51152AB
GMOne-Step Luciferase Reporter Gene Assay KitGenomeditech/GM-040503
Cell Culture

Cell Recovery

Recovery Medium: RPMI 1640+10% FBS+1% P.S

To insure the highest level of viability, thaw the vial and initiate the culture as soon as possible upon receipt. If upon arrival, continued storage of the frozen culture is necessary, it should be stored in liquid nitrogen vapor phase and not at -70°C. Storage at -70°C will result in loss of viability.

a)       Thaw the vial by gentle agitation in a 37°C water bath. To reduce the possibility of contamination, keep the O-ring and cap out of the water. Thawing should be rapid (approximately 2 - 3 minutes).

b)       Remove the vial from the water bath as soon as the contents are thawed, and decontaminate by dipping in or spraying with 70% ethanol. All of the operations from this point on should be carried out under strict aseptic conditions.

c)       Transfer the vial contents to a centrifuge tube containing 5.0 mL complete culture medium. And spin at approximately 176 x g for 5 minutes. Discard supernatant.

d)       Resuspend cell pellet with the recommended complete medium. And dispense the suspension into 1 - 2 T-25 culture flasks.

e)       Incubate the culture at 37°C in a suitable incubator. A 5% CO₂ in air atmosphere is recommended if using the medium described on this product sheet.

Cell Freezing

Freezing Medium: 90% FBS+10% DMSO

a)          Centrifuge at 176 x g for 3 minutes to collect cells.

b)         Resuspend the cells in pre-cooled freezing medium and adjust the cell density to 5E6 cells/mL.

c)          Aliquot 1 mL into each vial.

d)         Place the vial in a controlled-rate freezing container and store at -80°C for at least 1 day, then transfer to liquid nitrogen as soon as possible.

Cell passage

Growth medium: RPMI 1640+10% FBS+1% P.S+3.5 μg/mL Blasticidin+400 μg/mL Bleomycin+0.75 μg/mL Puromycin

Approximately 48-72 hours after the initial thawing, the cells can be passaged for the first time. After this initial passage, the culture medium can be adjusted to growth medium supplemented with antibiotics. If cells are not passaged within 48 hours, it is recommended to add some fresh recovery medium and place the flask horizontally.

a)          When the cell density reaches 1.5 - 2E6 cells/mL, subculture the cells. Do not allow the cell density to exceed 2E6 cells/mL.

b)         It is recommended to use T-25 flasks for subculturing.

c)          These cells are suspension cells, and it is recommended to use the "half-medium change" method to maintain optimal cell conditions during passaging.

d)         During passaging, you can directly add fresh growth medium to the culture flask, gently pipette to resuspend the cells, and then transfer the cell suspension to a new T-25 flask for continued culture.

Subcultivation Ratio: Maintain cultures at a cell concentraion between 3E5 and 1E6 viable cells/mL.

Medium Renewal: Every 2 to 3 days

Notes

a)          These cells are sensitive to density, so please ensure that the cell density is maintained within an appropriate range during culture and subculturing.

b)         During the first passage, pay attention to the nutrient supply; if not subculturing, make sure to add fresh recovery medium every other day as needed.
